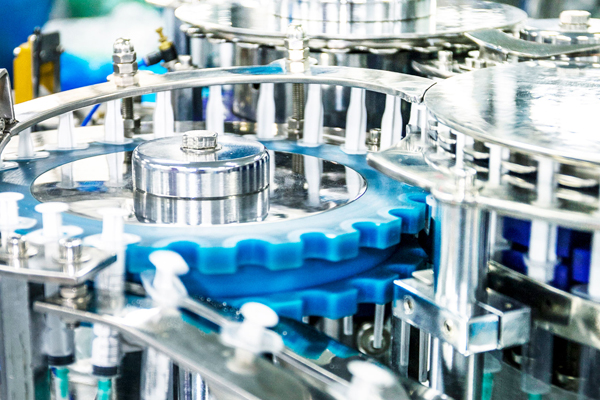

Syringe assembly machine


Main technical parameters

1. These sizes of syringe could be assembled: 10ml, and other sizes of syringe;

2. Capacity: not less than 240 pcs /min for 10ml syringe.

3. Dimension: 4500 × 3500 × 2300mm.

4. Staff: 1 staff for one machine.

5. Material feeding: automatically material feeding, centrifugally distribute the materials, automatically control the with material status and without material status.

6. There is high-pressure spray gun for silicon oil spraying. The silicon oil atomizing could be adjusted inside the high-pressure tin and under the range of air valve.

7. Lifetime: not less than 8 years ( not including the components ), periodical maintenance during the constant working could ensure the machine’s lifetime.

8. Machine power: 2.5KW, input power: 220V, 50Hz.

9. Weight: 1500KG.
